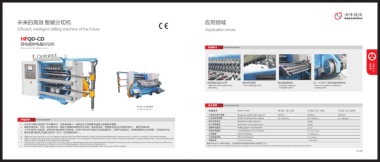

未来的高效 智能分切机 应用领域
Efficient, intelligent slitting machine of the future Application areas
HFQD-CD
锂电膜材电脑分切机
Lithium battery film slitting machine 机器细节 Details of the machine
高性能稳定圆刀分切 激光定位装置 自动压紧接膜台 3寸、6寸或7寸自动涨紧放卷顶头 新能源 光学行业
High-performance stable circular Laser positioning device Automatic compression 3-inch, 6 inch automatic tension tight
knife cutting bonding film station unwinding head
技术参数 Technical parameters
HFQD-CD机背面
HFQD-CD machine
机器型号 Machine type HFQD-CD-950 HFQD-CD-1300 HFQD-CD-2000
分切卷材最大宽度 Maximum width of slit material 950mm 1250mm 1950mm
分切后卷材宽度 Width of material after slitting 30-1250mm 30-1250mm 30-1950mm
产品应用 Product application
最大收卷直径 Maximum rolling diameter Φ600
分切张力高性能的宽广性与稳定性，从极维到最大，精密的张力控制是高品质完美卷取的保障。 最大放卷直径 Maximum unrolling diameter Φ800
智能恒速控制，计米、定长度停机、放卷少量膜料报警及停机功能。简捷的设定，便能稳定的控制质量始终如一，操作变得简单。 收卷纸芯直径 Rolling paper core diameter 3inch
人性化的设计与配置，结构巧妙的自调张力的收卷、具有升降功能气动恒压顶紧放卷机构、配备气动接料台，收卷纸管激光对齐装置，方便的卸料架。 放卷纸芯直径 Unrolling paper core diameter 3、6 or 7inch
铸铁机身,精密机床品质,陪伴您一年又一年,精度始终如一。
分切速度 Speed of slitting 5-150m/min
High performance slitting with broadness and stability, from the extremely dense to the largest dimension, precise tension control is protection for perfect winding. 分切薄膜厚度 Slit film thickness 12-125um
Stable quality control ensured by easy and simple operation with intelligent constant speed control, meter-counting, automatic stop by setting length, alarm and automatic
stop in case of shortage of unwinding film materials. 纠偏误差 Error correction ≤±0.5mm
Humanized design and configuration, winding with self-adjusting tension and unwinding with lifting function by pneumatic constant pressure film connection platform by
pneumatic pressing, laser alignment device for winding paper tube and easy unloading rack. 随着技术进步以上参数可能更改，如需要最新且详细的参数请联系洪峰销售工人员
Cast iron body and the high quality of precision machine tool to be with you year after year, precision never changes. With the progress of the above parameters may be changed, such as the need for the latest and detailed parameters, please contact peak sales engineer
