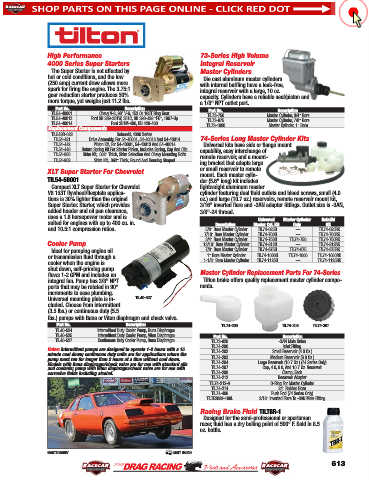

Page 615 - 2018 Racecar Engineering Drag Racing Parts and Accessories Catalog

High Performance 73-Series High Volume
4000 Series Super Starters Integral Reservoir
The Super Starter is not affected by Master Cylinders
hot or cold conditions, and the low Die cast aluminum master cylinders
(250 amp) current draw allows more with internal baffling have a leak-free,
spark for firing the engine. The 3.75:1 integral reservoir with a large, 10 oz.
gear reduction starter produces 50% capacity. Cylinders have a reliable seal/piston and
more torque, yet weighs just 11.2 lbs. a 1/8" NPT outlet port.
Part No. Description Part No. Description
TIL54-40001 Chevy V-8, 90° V-6, 153 Or 168T Ring Gear TIL73-750 Master Cylinder, 3/4" Bore
TIL54-40013 Ford SB 289-351W, 351C, BB 390-428 “FE”, 1967-Up TIL73-875 Master Cylinder, 7/8" Bore
TIL54-40014 Ford 351M-400, BB 429-460 TIL73-1000 Master Cylinder, 1" Bore
Replacement Components
TIL54SD-022 Solenoid, 4000 Series
TIL54-421 Drive Assembly, For 54-40001, 54-40013 And 54-40014 74-Series Long Master Cylinder Kits
TIL54-442 Pinion Kit, For 54-40001, 54-40013 And 54-40014 Universal kits have side or flange mount
TIL54-446 Return Spring Kit For Starter Pinion, Includes Spring, Cap And Clip capability, easy interchange of
TIL54-950 Shim Kit, .062" Thick, Shim Selection And Chevy Mounting Bolts
TIL54-952 Shim Kit, .062" Thick, Round And Housing Shaped remote reservoir, and a mount-
ing bracket that adapts large
XLT Super Starter For Chevrolet or small reservoir to remote
mount. Each master cylin-
TIL54-50001 der (5.6" long) kit includes
Compact XLT Super Starter for Chevrolet lightweight aluminum master
V8 153T flywheel/flexplate applica- cylinder featuring dual fluid outlets and bleed screws, small (4.0
tions is 30% lighter than the original oz.) and large (10.7 oz.) reservoirs, remote reservoir mount kit,
Super Starter. Starter, which provides 3/16" inverted flare and -3AN adapter fittings. Outlet size is -3AN,
added header and oil pan clearance, 3/8"-24 thread.
uses a 1.6 horsepower motor and is Universal Master Cylinder Rebuild
suited for engines with up to 400 cu. in. Description Master Cyl. Kit Only Kit
and 10.5:1 compression ratios. 5/8" Bore Master Cylinder TIL74-625U — TIL74-625RK
7/10" Bore Master Cylinder TIL74-700U — TIL74-700RK
3/4" Bore Master Cylinder TIL74-750U TIL74-750 TIL74-750RK
Cooler Pump 13/16" Bore Master Cylinder TIL74-812U — TIL74-812RK
Ideal for pumping engine oil 7/8" Bore Master Cylinder TIL74-875U TIL74-875 TIL74-875RK
1" Bore Master Cylinder
or transmission fluid through a 1-1/8" Bore Master Cylinder TIL74-1000U TIL74-1000 TIL74-1000RK
TIL74-1125RK
—
TIL74-1125U
cooler when the engine is
shut down, self-priming pump Master Cylinder Replacement Parts For 74-Series
flows 1-2 GPM and includes an
integral fan. Pump has 3/8" NPT Tilton brake offers quality replacement master cylinder compo-
ports that may be rotated in 90° nents.
increments to ease plumbing.
Universal mounting plate is in- TIL40-527
cluded. Choose from intermittent
(3.5 lbs.) or continuous duty (5.5
lbs.) pumps with Buna or Viton diaphragm and check valve.
Part No. Description TIL74-200 TIL74-203 TIL74-207
TIL40-524 Intermittent Duty Cooler Pump, Buna Diaphragm
TIL40-525 Intermittent Duty Cooler Pump, Viton Diaphragm Part No. Description
TIL40-527 Continuous Duty Cooler Pump, Buna Diaphragm TIL73-820 -3AN Male Union
TIL74-200 Inlet Fitting
Notes: Intermittent pumps are designed to operate 1-2 hours with a 15 TIL74-202 Small Reservoir (4.0 Oz.)
minute cool down; continuous duty units are for applications where the TIL74-203 Medium Reservoir (6.8 Oz.)
pump must run for longer than 2 hours at a time without cool down.
Models with Buna diaphragm/check valve are for use with standard oils TIL74-204 Large Reservoir (10.7 Oz.) (74 Series Only)
and coolants; pump with Viton diaphragm/check valve are for use with TIL74-207 Cap, 4.0, 6.8, And 10.7 Oz. Reservoir
corrosive fluids including alcohol. TIL74-208 Clamp, Each
TIL74-212 Reservoir Adapter
TIL74-212-A O-Ring For Master Cylinder
TIL74-214 24" Rubber Hose
TIL74-400 Push Rod (74 Series Only)
TILTE2089-188L 3/16" Inverted Flare To -3AN Male Fitting
Racing Brake Fluid TILTBR-1
Designed for the semi-professional or sportsman
racer, fluid has a dry boiling point of 590° F. Sold in 8.5
oz. bottle.

MONTE MOREY MATT HAUCH
613
