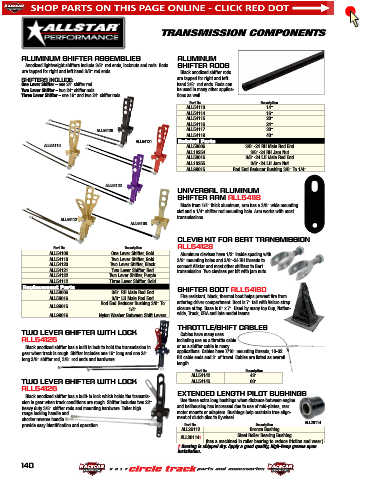

Page 141 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

TRANSMISSION COMPONENTS

ALUMINUM SHIFTER ASSEMBLIES ALUMINUM
Anodized lightweight shifters include 3/8" rod ends, locknuts and rods. Rods SHIFTER RODS
are tapped for right and left hand 3/8" rod ends. Black anodized shifter rods
SHIFTERS INCLUDE: are tapped for right and left
One Lever Shifter – one 24" shifter rod hand 3/8" rod ends. Rods can
Two Lever Shifter – two 24" shifter rods be used in many other applica-
Three Lever Shifter – one 16" and two 24" shifter rods tions as well.
Part No. Description
ALL54113 14"
ALL54114 16"
ALL54115 20"
ALL54116 24"
ALL54120 ALL54117 30"
ALL54119 40"
ALL54121 Related Parts
ALL54110 ALL58006 3/8"-24 RH Male Rod End
ALL18254 3/8"-24 RH Jam Nut
ALL58016 3/8"-24 LH Male Rod End
ALL18255 3/8"-24 LH Jam Nut
ALL99015 Rod End Reducer Bushing 3/8" To 1/4"

ALL54122
UNIVERSAL ALUMINUM
SHIFTER ARM ALL54118
Made from 1/4" thick aluminum, arm has a 3/8" wide mounting
slot and a 1/4" shifter rod mounting hole. Arm works with most
transmissions.
ALL54112
ALL54108
CLEVIS KIT FOR BERT TRANSMISSION
Part No. Description ALL54128
ALL54108 One Lever Shifter, Gold Aluminum clevises have 1/2" inside spacing with
ALL54110 Two Lever Shifter, Gold 3/8" mounting holes and 3/8"-24 RH threads to
ALL54120 Two Lever Shifter, Black connect Allstar and most other shifters to Bert
ALL54121 Two Lever Shifter, Red transmission. Two clevises per kit with jam nuts.
ALL54122 Two Lever Shifter, Purple
ALL54112 Three Lever Shifter, Gold
Replacement Parts SHIFTER BOOT ALL54130
ALL58006 3/8" RH Male Rod End
ALL58016 3/8" LH Male Rod End Fire resistant, black, thermal boot helps prevent fire from
Rod End Reducer Bushing 3/8" To entering driver compartment. Boot is 7" tall with Velcro strap
ALL99015 closure at top. Base is 6" x 7". Used by many top Cup, Nation-
1/4"
ALL99016 Nylon Washer Between Shift Levers wide, Truck, CRA and late model teams.
THROTTLE/SHIFT CABLES
TWO LEVER SHIFTER WITH LOCK Cables have many uses
ALL54125 including use as a throttle cable
Black anodized shifter has a built in lock to hold the transmission in or as a shifter cable in many
gear when track is rough. Shifter includes one 16" long and one 24" applications. Cables have 7/16" mounting threads, 10-32
long 3/8" shifter rod, 3/8" rod ends and hardware. RH cable ends and 3" of travel. Cables are listed as overall
length.
Part No. Description
ALL54142 43"
TWO LEVER SHIFTER WITH LOCK ALL54145 60"
ALL54126
Black anodized shifter has a built-in lock which holds the transmis- EXTENDED LENGTH PILOT BUSHINGS
sion in gear when track conditions are rough. Shifter includes two 22" Use these extra long bushings when distance between engine
heavy duty 3/8" shifter rods and mounting hardware. Taller high and bellhousing has increased due to use of mid-plates, rear
range locking handle and motor mounts or adapters. Bushings help maintain true align-
shorter reverse handle ment of clutch disc to flywheel. ALL26114
provide easy identification and operation. Part No. Description
ALL26112 Bronze Bushing
Steel Roller Bearing Bushing
ALL26114 †
(has a machined in roller bearing to reduce friction and wear.)
† Bearing is shipped dry. Apply a good quality, high-temp grease upon
installation.
