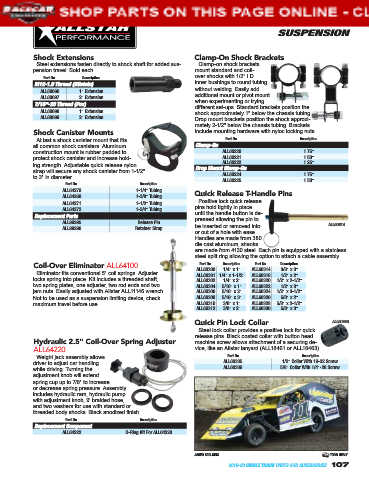

Page 111 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

SUSPENSION

Shock Extensions Clamp-On Shock Brackets
Steel extensions fasten directly to shock shaft for added sus- Clamp-on shock brackets
pension travel. Sold each. mount standard and coil-
Part No. Description over shocks with 1/2" I.D.
M12-1.0 Thread (Bilstein) inner bushings to round tubing
ALL60096 1" Extension without welding. Easily add
ALL60097 2" Extension additional mount or pivot mount
7/16"-20 Thread (Fox) when experimenting or trying
ALL60098 1" Extension different set-ups. Standard brackets position the
shock approximately 1" below the chassis tubing.
ALL60099 2" Extension Drop mount brackets position the shock approxi-
mately 2-1/2" below the chassis tubing. Brackets
Shock Canister Mounts include mounting hardware with nyloc locking nuts.
$W ODVW D VKRFN FDQLVWHU PRXQW WKDW ¿WV Part No. Description
all common shock canisters. Aluminum Clamp-On
construction mount is rubber padded to ALL60220 1.75"
protect shock canister and increase hold- ALL60221 1.50"
ALL60222
ing strength. Adjustable quick release nylon Drop Mount Clamp-On 1.25"
strap will secure any shock canister from 1-1/2" ALL60224 1.75"
to 3" in diameter.
ALL60225 1.50"
Part No. Description
ALL64270 1-1/4" Tubing
ALL64269 1-3/8" Tubing Quick Release T-Handle Pins
ALL64271 1-1/2" Tubing Positive lock quick release
ALL64272 1-3/4" Tubing pins hold tightly in place
Replacement Parts until the handle button is de-
ALL99295 Release Pin pressed allowing the pin to ALL60314
be inserted or removed into
ALL99296 Retainer Strap
or out of a hole with ease.
Handles are made from 380
die cast aluminum, shanks
are made from 4130 steel. Each pin is equipped with a stainless
steel split ring allowing the option to attach a cable assembly.
Coil-Over Eliminator ALL64100 Part No. Description Part No. Description
(OLPLQDWRU ¿WV FRQYHQWLRQDO FRLO VSULQJV $GMXVWHU ALL60300 1/4" x 1" ALL60314 3/8" x 3"
ALL60301 1/4" x 1-1/2"
ALL60318
1/2" x 2"
locks spring into place. Kit includes a threaded shaft, ALL60302 1/4" x 2" ALL60320 1/2" x 2-1/2"
two spring plates, one adjuster, two rod ends and two ALL60304 5/16" x 1" ALL60322 1/2" x 3"
jam nuts. Easily adjusted with Allstar ALL11146 wrench. ALL60306 5/16" x 2" ALL60324 1/2" x 3-1/2"
Not to be used as a suspension limiting device, check ALL60308 5/16" x 3" ALL60326 5/8" x 2"
maximum travel before use. ALL60310 3/8" x 1" ALL60328 5/8" x 2-1/2"
ALL60312 3/8" x 2" ALL60330 5/8" x 3"
Quick Pin Lock Collar ALL60335
Steel lock collar provides a positive lock for quick
release pins. Black coated collar with button head
Hydraulic 2.5" Coil-Over Spring Adjuster machine screw allows attachment of a securing de-
ALL64220 vice, like an Allstar lanyard (ALL18461 or ALL18463).
Weight jack assembly allows Part No. Description
1/2" Collar With 10-32 Screw
driver to adjust car handling ALL60335 5/8" Collar With 1/4"-28 Screw
ALL60336
while driving. Turning the
adjustment knob will extend
spring cup up to 7/8" to increase
or decrease spring pressure. Assembly
includes hydraulic ram, hydraulic pump
with adjustment knob, 9' braided hose,
and two washers for use with standard or
WKUHDGHG ERG\ VKRFNV %ODFN DQRGL]HG ¿QLVK
Part No. Description
Replacement Component
ALL64222 O-Ring Kit For ALL64220
