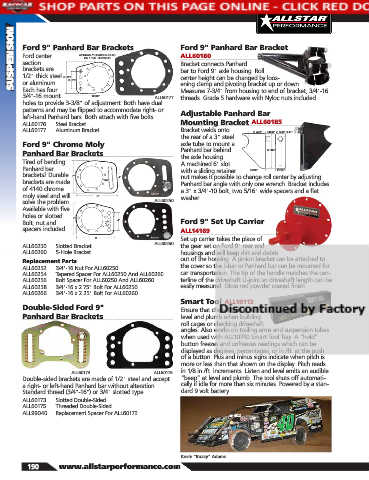

Page 192 - 2018 Allstar Performance Parts and Equipment Catalog

SUSPENSION Ford 9" Panhard Bar Brackets Ford 9" Panhard Bar Bracket

Ford center
ALL60180
4 EQUALLY SPACED HOLES
ON 1.125" CENTERS
section
Bracket connects Panhard
brackets are
bar to Ford 9" axle housing. Roll
1/2" thick steel 6.625"
or aluminum.
ening clamp and pivoting bracket up or down.
Each has four
Measures 7-3/4" from housing to end of bracket, 3/4"-16
3/4"-16 mount 3.375" 8.000" ALL60177 center height can be changed by loos-
threads. Grade 5 hardware with Nyloc nuts included.
holes to provide 3-3/8" of adjustment. Both have dual
patterns and may be flipped to accommodate right- or
left-hand Panhard bars. Both attach with five bolts. Adjustable Panhard Bar
Mounting Bracket ALL60185
ALL60176 ..... Steel Bracket
ALL60177 ..... Aluminum Bracket Bracket welds onto 3.750" 6.000" x .500" SLOT
the rear of a 3" steel
Ford 9" Chrome Moly axle tube to mount a
Panhard Bar Brackets Panhard bar behind 8.000"
the axle housing.
Tired of bending A machined 6" slot
Panhard bar with a sliding retainer 5.000" 2.250"
brackets? Durable 7" 4" nut makes it possible to change roll center by adjusting
brackets are made 1/2" Panhard bar angle with only one wrench. Bracket includes
of 4140 chrome a 3" x 3/4"-10 bolt, two 5/16" wide spacers and a flat
moly steel and will 9" washer.
solve the problem. ALL60250
Available with five
holes or slotted. 7"
Bolt, nut and 1" 4" Ford 9" Set Up Carrier
spacers included. ALL14169
9" Set up carrier takes the place of
ALL60260
ALL60250 ..... Slotted Bracket the gear set on Ford 9" rear end
ALL60260 ..... 5-Hole Bracket housings and will keep dirt and debris
Replacement Parts out of the housing. A pinion bracket can be attached to
ALL60252 ..... 3/4"-16 Nut For ALL60250 the cover so the J-bar or Panhard bar can be mounted for
ALL60254 ..... Tapered Spacer For ALL60250 And ALL60260 car transportation. The tip of the handle matches the cen-
ALL60256 ..... Bolt Spacer For ALL60250 And ALL60260 terline of the driveshaft U-joint so driveshaft length can be
ALL60258 ..... 3/4"-16 x 2.75" Bolt For ALL60250 easily measured. Gloss red powder coated finish.
ALL60266 ..... 3/4"-16 x 2.25" Bolt For ALL60260
Smart Tool ALL10113
Double-Sided Ford 9" Ensure that chassis tubing is
Panhard Bar Brackets level and plumb when building
roll cages or checking driveshaft
angles. Also works on trailing arms and suspension tubes
when used with ALL10740 Smart Tool Tray. A “hold”
button freezes and unfreezes readings which can be
displayed as degrees, percentages, or in./ft. at the push
of a button. Plus and minus signs indicate when pitch is
more or less than that shown on the display. Pitch reads
ALL60173 ALL60175 in 1/8 in./ft. increments. Listen and level emits an audible
Double-sided brackets are made of 1/2" steel and accept “beep” at level and plumb. The tool shuts off automati-
a right- or left-hand Panhard bar without alteration. cally if idle for more than six minutes. Powered by a stan-
Standard thread (3/4"-16") or 3/4" slotted type. dard 9 volt battery.
ALL60173 ..... Slotted Double-Sided
ALL60175 ..... Threaded Double-Sided
ALL99040 .... Replacement Spacer For ALL60173

Kevin “Buzzy” Adams
