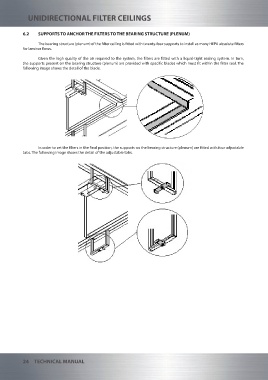

UNIDIRECTIONAL FILTER CEILINGS
6.2 SUPPORTS TO ANCHOR THE FILTERS TO THE BEARING STRUCTURE (PLENUM)
The bearing structure (plenum) of the filter ceiling is fitted with twenty-four supports to install as many HEPA absolute filters
for laminar flows.
Given the high quality of the air required to the system, the filters are fitted with a liquid-tight sealing system. In turn,
the supports present on the bearing structure (plenum) are provided with specific blades which must fit within the filter seal. The
following image shows the detail of the blade.
In order to set the filters in the final position, the supports on the bearing structure (plenum) are fitted with four adjustable
tabs. The following image shows the detail of the adjustable tabs.
