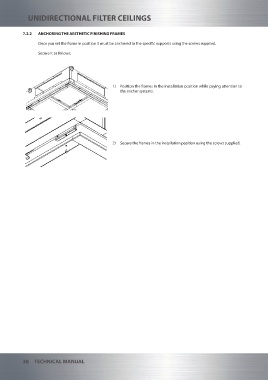

UNIDIRECTIONAL FILTER CEILINGS



           7.2.2   ANCHORING THE AESTHETIC FINISHING FRAMES
                  Once you set the frame in position it must be anchored to the specific supports using the screws supplied.

                  Secure it as follows:







                                                   1)  Position the frames in the installation position while paying attention to
                                                      the anchor systems.













                                                   2)  Secure the frames in the installation position using the screws supplied.


























































           28     TECHNICAL MANUAL
