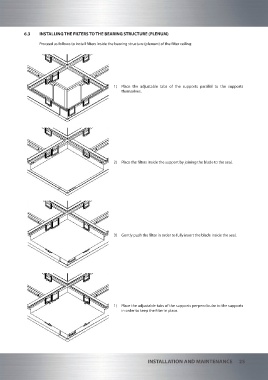

6.3 INSTALLING THE FILTERS TO THE BEARING STRUCTURE (PLENUM)

Proceed as follows to install filters inside the bearing structure (plenum) of the filter ceiling:

1) Place the adjustable tabs of the supports parallel to the supports
themselves.

2) Place the filters inside the support by joining the blade to the seal.

3) Gently push the filter in order to fully insert the blade inside the seal.

1) Place the adjustable tabs of the supports perpendicular to the supports
in order to keep the filter in place.
