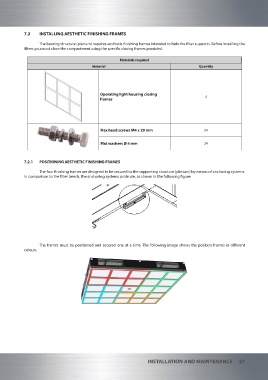

7.2 INSTALLING AESTHETIC FINISHING FRAMES

The bearing structure (plenum) requires aesthetic finishing frames intended to hide the filter supports. Before installing the
filters you must close the compartment using the specific closing frames provided.

Materials required
Material Quantity

Operating light housing closing
frames 4

Hex head screws M4 x 20 mm 24

Flat washers Ø 4 mm 24

7.2.1 POSITIONING AESTHETIC FINISHING FRAMES

The four finishing frames are designed to be secured to the supporting structure (plenum) by means of anchoring systems.
In comparison to the filter bench, the anchoring systems protrude, as shown in the following figure:

The frames must be positioned and secured one at a time. The following image shows the position frames in different
colours.

INSTALLATION AND MAINTENANCE 27
