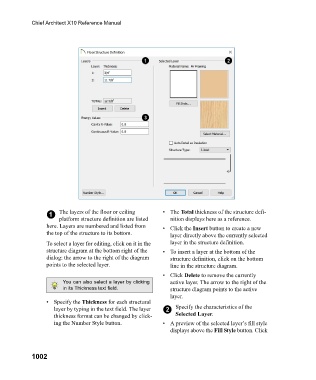

1 The layers of the floor or ceiling • The Total thickness of the structure defi-
platform structure definition are listed nition displays here as a reference.
here. Layers are numbered and listed from • Click the Insert button to create a new
the top of the structure to its bottom.
layer directly above the currently selected
To select a layer for editing, click on it in the layer in the structure definition.
structure diagram at the bottom right of the • To insert a layer at the bottom of the
dialog: the arrow to the right of the diagram structure definition, click on the bottom
points to the selected layer. line in the structure diagram.
• Click Delete to remove the currently
You can also select a layer by clicking active layer. The arrow to the right of the
in its Thickness text field. structure diagram points to the active
layer.
• Specify the Thickness for each structural
layer by typing in the text field. The layer 2 Specify the characteristics of the
thickness format can be changed by click- Selected Layer.
ing the Number Style button. • A preview of the selected layer’s fill style
displays above the Fill Style button. Click
