Distribution Region/Path Specification Dialogs

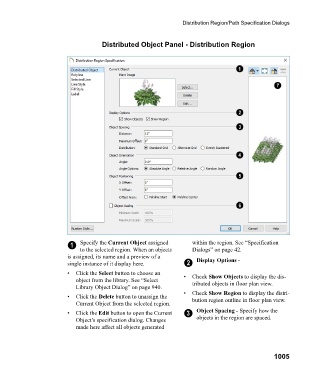

Distributed Object Panel - Distribution Region

1 Specify the Current Object assigned within the region. See “Specification
to the selected region. When an objects Dialogs” on page 42.
is assigned, its name and a preview of a Display Options -
single instance of it display here. 2
• Click the Select button to choose an • C h e c k Show Objects to display the dis-
object from the library. See “Select tributed objects in floor plan view.
Library Object Dialog” on page 940.
• C h e c k Show Region to display the distri-
• Click the Delete button to unassign the bution region outline in floor plan view.
Current Object from the selected region.
• Click the Edit button to open the Current 3 Object Spacing - Specify how the
Object’s specification dialog. Changes objects in the region are spaced.
made here affect all objects generated

1005
