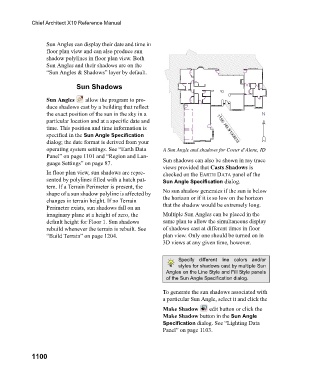

Chief Architect X10 Reference Manual
Sun Angles can display their date and time in
floor plan view and can also produce sun
shadow polylines in floor plan view. Both
Sun Angles and their shadows are on the
“Sun Angles & Shadows” layer by default.
Sun Shadows
Sun Angles allow the program to pro-
duce shadows cast by a building that reflect
the exact position of the sun in the sky in a
particular location and at a specific date and
time. This position and time information is
specified in the Sun Angle Specification
dialog; the date format is derived from your
operating system settings. See “Earth Data A Sun Angle and shadows for Coeur d’Alene, ID
Panel” on page 1101 and “Region and Lan-
guage Settings” on page 87. Sun shadows can also be shown in ray trace
views provided that Casts Shadows is
In floor plan view, sun shadows are repre- checked on the EARTH DATA panel of the
sented by polylines filled with a hatch pat- Sun Angle Specification dialog.
tern. If a Terrain Perimeter is present, the
shape of a sun shadow polyline is affected by No sun shadow generates if the sun is below
changes in terrain height. If no Terrain the horizon or if it is so low on the horizon
Perimeter exists, sun shadows fall on an that the shadow would be extremely long.
imaginary plane at a height of zero, the Multiple Sun Angles can be placed in the
default height for Floor 1. Sun shadows same plan to allow the simultaneous display
rebuild whenever the terrain is rebuilt. See of shadows cast at different times in floor
“Build Terrain” on page 1204. plan view. Only one should be turned on in
3D views at any given time, however.
Specify different line colors and/or
styles for shadows cast by multiple Sun
Angles on the Line Style and Fill Style panels
of the Sun Angle Specification dialog.
To generate the sun shadows associated with
a particular Sun Angle, select it and click the
Make Shadow edit button or click the
Make Shadow button in the Sun Angle
Specification dialog. See “Lighting Data
Panel” on page 1103.
