Chief Architect X10 Reference Manual

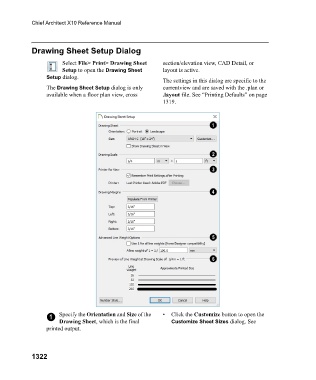

Drawing Sheet Setup Dialog
Select File> Print> Drawing Sheet section/elevation view, CAD Detail, or
Setup to open the Drawing Sheet layout is active.
Setup dialog.
The settings in this dialog are specific to the
The Drawing Sheet Setup dialog is only currentview and are saved with the .plan or
available when a floor plan view, cross .layout file. See “Printing Defaults” on page
1319.
1 Specify the Orientation and Size of the • Click the Customize button to open the
Drawing Sheet, which is the final Customize Sheet Sizes dialog. See
printed output.
1322
