Chief Architect X10 Reference Manual

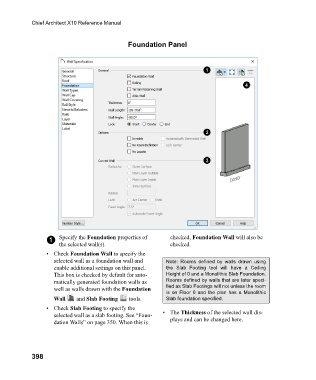

Foundation Panel

1 Specify the Foundation properties of checked, Foundation Wall will also be
the selected wall(s). checked.
• Check Foundation Wall to specify the
selected wall as a foundation wall and Note: Rooms defined by walls drawn using
enable additional settings on this panel. the Slab Footing tool will have a Ceiling
This box is checked by default for auto- Height of 0 and a Monolithic Slab Foundation.
matically generated foundation walls as Rooms defined by walls that are later speci-
well as walls drawn with the Foundation fied as Slab Footings will not unless the room
is on Floor 0 and the plan has a Monolithic
Wall and Slab Footing t o o l s . Slab foundation specified.
• Check Slab Footing to specify the
selected wall as a slab footing. See “Foun- • The Thickness of the selected wall dis-
dation Walls” on page 350. When this is plays and can be changed here.

398
