Door Specification Dialog

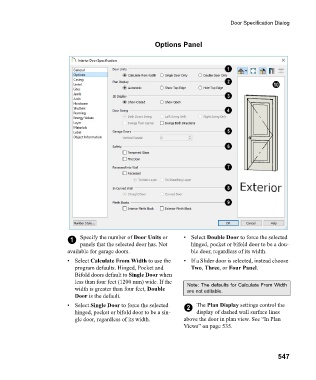

Options Panel

1 Specify the number of Door Units or • Select Double Door to force the selected
panels that the selected door has. Not hinged, pocket or bifold door to be a dou-
available for garage doors. ble door, regardless of its width.
• Select Calculate From Width to use the • If a Slider door is selected, instead choose
program defaults. Hinged, Pocket and Two, Three, or Four Panel.
Bifold doors default to Single Door when
less than four feet (1200 mm) wide. If the Note: The defaults for Calculate From Width
width is greater than four feet, Double are not editable.
Door is the default.
• Select Single Door to force the selected 2 The Plan Display settings control the
hinged, pocket or bifold door to be a sin- display of dashed wall surface lines
gle door, regardless of its width. above the door in plan view. See “In Plan
Views” on page 535.

547
