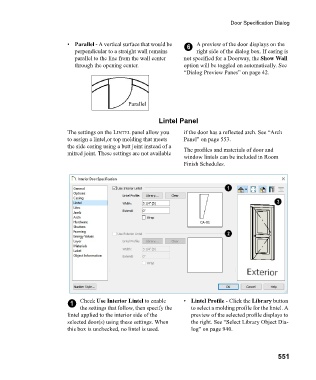

P. 551

Door Specification Dialog



                               • Parallel - A vertical surface that would be   6  A preview of the door displays on the
                                  perpendicular to a straight wall remains   right side of the dialog box. If casing is
                                  parallel to the line from the wall center   not specified for a Doorway, the Show Wall
                                  through the opening center.          option will be toggled on automatically. See
                                                                       “Dialog Preview Panes” on page 42.




                                                    Parallel


                                                              Lintel Panel
                               The settings on the LINTEL panel allow you   if the door has a reflected arch. See “Arch
                               to assign a lintel,or top molding that meets   Panel” on page 553.
                               the side casing using a butt joint instead of a   The profiles and materials of door and
                               mitred joint. These settings are not available
                                                                       window lintels can be included in Room
                                                                       Finish Schedules.




























                                1   Check Use Interior Lintel to enable   • Lintel Profile - Click the Library button
                                    the settings that follow, then specify the   to select a molding profile for the lintel. A
                               lintel applied to the interior side of the   preview of the selected profile displays to
                               selected door(s) using these settings. When   the right. See “Select Library Object Dia-
                               this box is unchecked, no lintel is used.  log” on page 940.




                                                                                                       551
