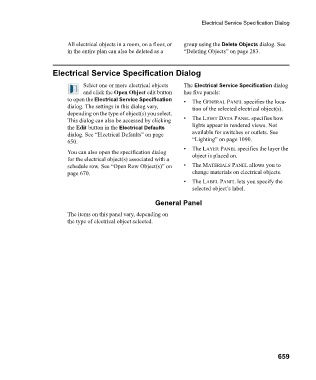

Page 659 - Chief Architect Reference Manual

Electrical Service Specification Dialog

All electrical objects in a room, on a floor, or group using the Delete Objects dialog. See
in the entire plan can also be deleted as a “Deleting Objects” on page 283.

Electrical Service Specification Dialog
Select one or more electrical objects The Electrical Service Specification dialog
and click the Open Object edit button has five panels:
to open the Electrical Service Specification • T h e G ENERAL PANEL specifies the loca-
dialog. The settings in this dialog vary, tion of the selected electrical object(s).
depending on the type of object(s) you select.
This dialog can also be accessed by clicking • T h e L IGHT DATA PANEL specifies how
the Edit button in the Electrical Defaults lights appear in rendered views. Not
dialog. See “Electrical Defaults” on page available for switches or outlets. See
650. “Lighting” on page 1090.
• T h e L AYER PANEL specifies the layer the
You can also open the specification dialog object is placed on.
for the electrical object(s) associated with a
schedule row. See “Open Row Object(s)” on • T h e M ATERIALS PANEL allows you to
page 670. change materials on electrical objects.
• T h e L ABEL PANEL lets you specify the
selected object’s label.

General Panel

The items on this panel vary, depending on
the type of electrical object selected.

659
