Chief Architect X10 Reference Manual

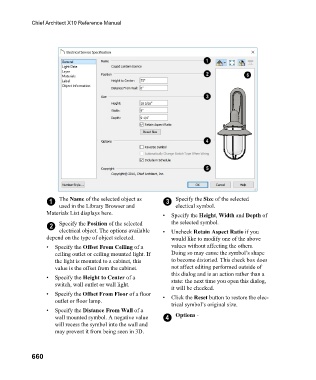

1 The Name of the selected object as 3 Specify the Size of the selected
used in the Library Browser and electical symbol.
Materials List displays here. • Specify the Height, Width and Depth of
2 Specify the Position of the selected the selected symbol.
electrical object. The options available • Uncheck Retain Aspect Ratio if you
depend on the type of object selected. would like to modify one of the above
• Specify the Offset From Ceiling of a values without affecting the others.
ceiling outlet or ceiling mounted light. If Doing so may cause the symbol’s shape
the light is mounted to a cabinet, this to become distorted. This check box does
value is the offset from the cabinet. not affect editing performed outside of
this dialog and is an action rather than a
• Specify the Height to Center of a state: the next time you open this dialog,
switch, wall outlet or wall light.
it will be checked.
• Specify the Offset From Floor of a floor • Click the Reset button to restore the elec-
outlet or floor lamp.
trical symbol’s original size.
• Specify the Distance From Wall of a
wall mounted symbol. A negative value 4 Options -
will recess the symbol into the wall and
may prevent it from being seen in 3D.

660
