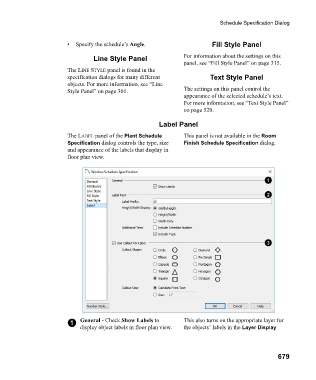

Page 679 - Chief Architect Reference Manual

Schedule Specification Dialog

• Specify the schedule’s Angle. Fill Style Panel

Line Style Panel For information about the settings on this
panel, see “Fill Style Panel” on page 315.
The LINE STYLE panel is found in the
specification dialogs for many different Text Style Panel
objects. For more information, see “Line
Style Panel” on page 301. The settings on this panel control the
appearance of the selected schedule’s text.
For more information, see “Text Style Panel”
on page 520.

Label Panel
The LABEL panel of the Plant Schedule This panel is not available in the Room
Specification dialog controls the type, size Finish Schedule Specification dialog.
and appearance of the labels that display in
floor plan view.

1 General - Check Show Labels to This also turns on the appropriate layer for
display object labels in floor plan view. the objects’ labels in the Layer Display

679
