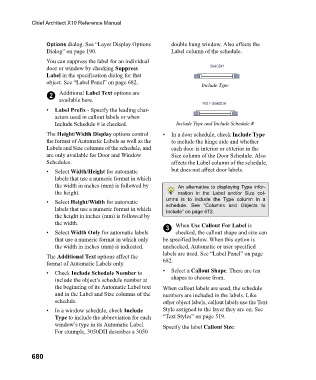

Page 680 - Chief Architect Reference Manual

Chief Architect X10 Reference Manual

Options dialog. See “Layer Display Options double hung window. Also affects the
Dialog” on page 190. Label column of the schedule.
You can suppress the label for an individual
door or window by checking Suppress
Label in the specification dialog for that
object. See “Label Panel” on page 682. Include Type
2 Additional Label Text options are
available here.
• Label Prefix - Specify the leading char-
acters used in callout labels or when
Include Schedule # is checked. Include Type and Include Schedule #
The Height/Width Display options control • In a door schedule, check Include Type
the format of Automatic Labels as well as the to include the hinge side and whether
Labels and Size columns of the schedule, and each door is interior or exterior in the
are only available for Door and Window Size column of the Door Schedule. Also
Schedules. affects the Label column of the schedule,
• Select Width/Height for automatic but does not affect door labels.
labels that use a numeric format in which
the width in inches (mm) is followed by An alternative to displaying Type infor-
the height. mation in the Label and/or Size col-
• Select Height/Width for automatic umns is to include the Type column in a
schedule. See “Columns and Objects to
labels that use a numeric format in which Include” on page 672.
the height in inches (mm) is followed by
the width. When Use Callout For Label is
3
• Select Width Only for automatic labels checked, the callout shape and size can
that use a numeric format in which only be specified below. When this option is
the width in inches (mm) is indicated. unchecked, Automatic or user specified
labels are used. See “Label Panel” on page
The Additional Text options affect the
format of Automatic Labels only. 682.
• Check Include Schedule Number to • Select a Callout Shape. There are ten
include the object’s schedule number at shapes to choose from.
the beginning of its Automatic Label text When callout labels are used, the schedule
and in the Label and Size columns of the numbers are included in the labels. Like
schedule. other object labels, callout labels use the Text
• In a window schedule, check Include Style assigned to the layer they are on. See
Type to include the abbreviation for each “Text Styles” on page 519.
window’s type in its Automatic Label. Specify the label Callout Size:
For example, 3050DH describes a 3050

680
