Chief Architect X10 Reference Manual

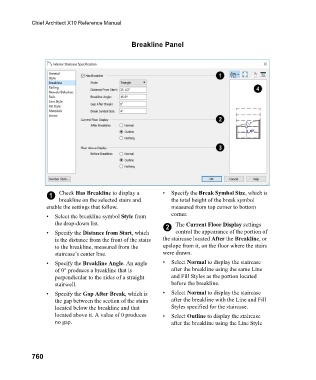

Breakline Panel

1 Check Has Breakline to display a • Specify the Break Symbol Size, which is
breakline on the selected stairs and the total height of the break symbol
enable the settings that follow. measured from top corner to bottom
• Select the breakline symbol Style from corner.
the drop-down list. The Current Floor Display settings
2
• Specify the Distance from Start, which control the appearance of the portion of
is the distance from the front of the stairs the staircase located After the Breakline, or
to the breakline, measured from the upslope from it, on the floor where the stairs
staircase’s center line. were drawn.
• Specify the Breakline Angle. An angle • Select Normal to display the staircase
of 0° produces a breakline that is after the breakline using the same Line
perpendicular to the sides of a straight and Fill Styles as the portion located
stairwell. before the breakline.
• Specify the Gap After Break, which is • Select Normal to display the staircase
the gap between the section of the stairs after the breakline with the Line and Fill
located below the breakline and that Styles specified for the staircase.
located above it. A value of 0 produces • Select Outline to display the staircase
no gap. after the breakline using the Line Style

760
