Chief Architect X10 Reference Manual

5 A preview of the selected staircase the section that was selected when the dialog
displays on the right side of the panel. was opened will display. See “Dialog
If the staircase includes any landings, only Preview Panes” on page 42.

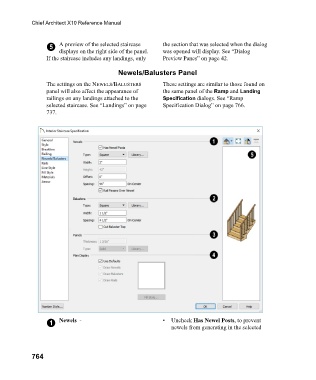

Newels/Balusters Panel
The settings on the NEWELS/BALUSTERS These settings are similar to those found on
panel will also affect the appearance of the same panel of the Ramp and Landing
railings on any landings attached to the Specification dialogs. See “Ramp
selected staircase. See “Landings” on page Specification Dialog” on page 766.
737.

1 Newels - • Uncheck Has Newel Posts, to prevent
newels from generating in the selected

764
