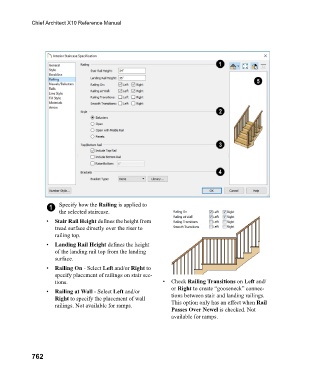

1 Specify how the Railing is applied to
the selected staircase.
• Stair Rail Height defines the height from
tread surface directly over the riser to
railing top.
• Landing Rail Height defines the height
of the landing rail top from the landing
surface.
• Railing On - Select Left and/or Right to
specify placement of railings on stair sec-
tions. • Check Railing Transitions on Left and/
or Right to create “gooseneck” connec-
• Railing at Wall - Select Left and/or
Right to specify the placement of wall tions between stair and landing railings.
railings. Not available for ramps. This option only has an effect when Rail
Passes Over Newel is checked. Not
available for ramps.
