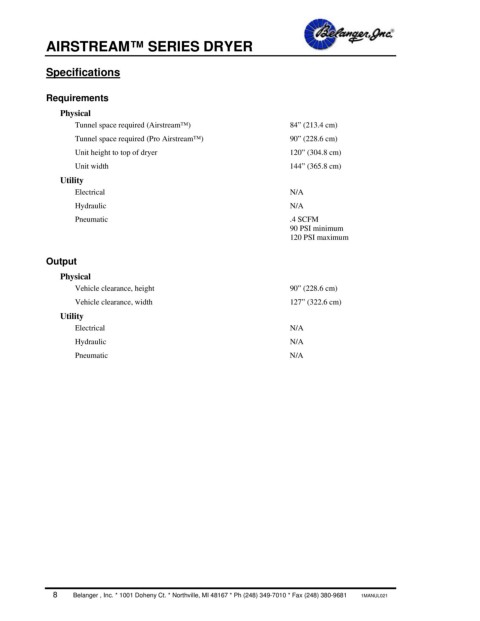

Page 10 - Airstream™ Series Dryer

AIRSTREAM™ SERIES DRYER

Specifications

Requirements
Physical
Tunnel space required (Airstream™) 84” (213.4 cm)
Tunnel space required (Pro Airstream™) 90” (228.6 cm)

Unit height to top of dryer 120” (304.8 cm)
Unit width 144” (365.8 cm)
Utility
Electrical N/A
Hydraulic N/A
Pneumatic .4 SCFM
90 PSI minimum
120 PSI maximum

Output
Physical
Vehicle clearance, height 90” (228.6 cm)
Vehicle clearance, width 127” (322.6 cm)

Utility
Electrical N/A
Hydraulic N/A
Pneumatic N/A

8 Belanger , Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL021
