AIRSTREAM™ SERIES DRYER

Specifications

Impeller Rotation

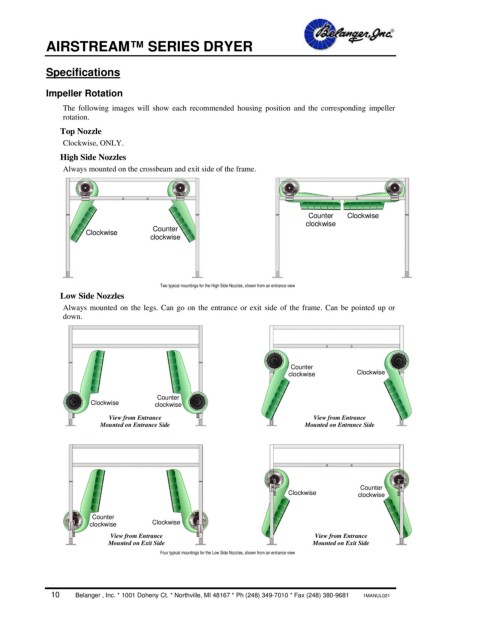

The following images will show each recommended housing position and the corresponding impeller
rotation.
Top Nozzle
Clockwise, ONLY.
High Side Nozzles
Always mounted on the crossbeam and exit side of the frame.

Counter Clockwise
clockwise
Clockwise Counter
clockwise

Two typical mountings for the High Side Nozzles, shown from an entrance view
Low Side Nozzles
Always mounted on the legs. Can go on the entrance or exit side of the frame. Can be pointed up or
down.

Counter
clockwise Clockwise

Counter
Clockwise clockwise
View from Entrance View from Entrance
Mounted on Entrance Side Mounted on Entrance Side

Counter
Clockwise clockwise

Counter
clockwise Clockwise
View from Entrance View from Entrance
Mounted on Exit Side Mounted on Exit Side
Four typical mountings for the Low Side Nozzles, shown from an entrance view
