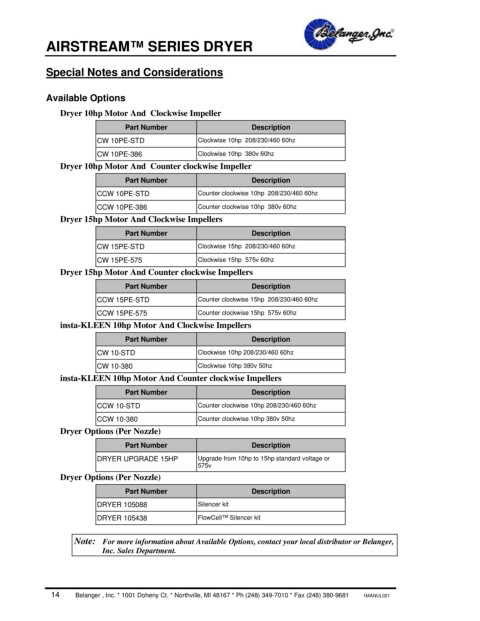

Page 16 - Airstream™ Series Dryer

AIRSTREAM™ SERIES DRYER

Special Notes and Considerations

Available Options
Dryer 10hp Motor And Clockwise Impeller

Part Number Description
CW 10PE-STD Clockwise 10hp 208/230/460 60hz
CW 10PE-386 Clockwise 10hp 380v 60hz
Dryer 10hp Motor And Counter clockwise Impeller
Part Number Description
CCW 10PE-STD Counter clockwise 10hp 208/230/460 60hz
CCW 10PE-386 Counter clockwise 10hp 380v 60hz
Dryer 15hp Motor And Clockwise Impellers
Part Number Description

CW 15PE-STD Clockwise 15hp 208/230/460 60hz
CW 15PE-575 Clockwise 15hp 575v 60hz
Dryer 15hp Motor And Counter clockwise Impellers
Part Number Description
CCW 15PE-STD Counter clockwise 15hp 208/230/460 60hz
CCW 15PE-575 Counter clockwise 15hp 575v 60hz
insta-KLEEN 10hp Motor And Clockwise Impellers

Part Number Description
CW 10-STD Clockwise 10hp 208/230/460 60hz
CW 10-380 Clockwise 10hp 380v 50hz
insta-KLEEN 10hp Motor And Counter clockwise Impellers
Part Number Description
CCW 10-STD Counter clockwise 10hp 208/230/460 60hz
CCW 10-380 Counter clockwise 10hp 380v 50hz
Dryer Options (Per Nozzle)
Part Number Description
DRYER UPGRADE 15HP Upgrade from 10hp to 15hp standard voltage or
575v
Dryer Options (Per Nozzle)

Part Number Description
DRYER 105088 Silencer kit
DRYER 105438 FlowCell™ Silencer kit

Note: For more information about Available Options, contact your local distributor or Belanger,
Inc. Sales Department.

14 Belanger , Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL021
