AIRSTREAM™ SERIES DRYER

Installation

Airstream™ / Pro Airstream™ Frame With Top Nozzle
Pivot Arm Overview
1) Once the equipment is properly positioned, check for level and plumb on all dimensions. Shim the
dryer appropriately (shims not provided), drill and lag the dryer to the floor using the 5/8 x 6” (16 mm x
15.2 cm) cement quick lag bolts provided.
2) Remove bearing housing shown below, then loosen the remaining bearing housings also shown
below.

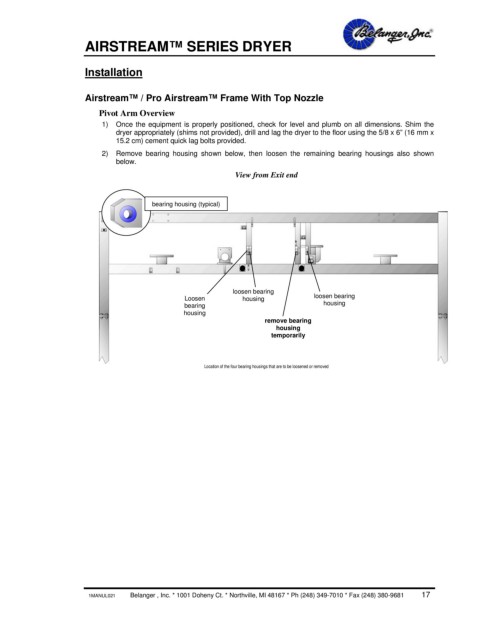

View from Exit end

bearing housing (typical)

loosen bearing
Loosen housing loosen bearing
housing
bearing
housing
remove bearing
housing
temporarily

Location of the four bearing housings that are to be loosened or removed
