AIRSTREAM™ SERIES DRYER

             Installation

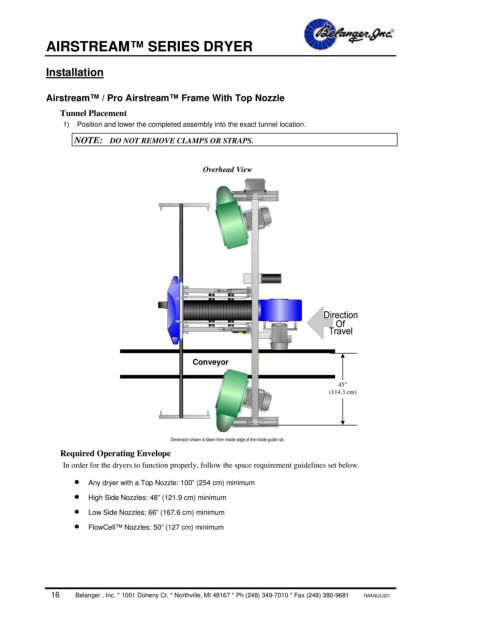

             Airstream™ / Pro Airstream™ Frame With Top Nozzle
                Tunnel Placement
                 1)  Position and lower the completed assembly into the exact tunnel location.

                    NOTE:  DO NOT REMOVE CLAMPS OR STRAPS.

                                                     Overhead View





























                                                  Conveyor


                                                                                       45”
                                                                                     (114.3 cm)





                                            Dimension shown is taken from inside edge of the inside guide rail.

                Required Operating Envelope
                 In order for the dryers to function properly, follow the space requirement guidelines set below.
                    •  Any dryer with a Top Nozzle: 100” (254 cm) minimum

                    •  High Side Nozzles: 48” (121.9 cm) minimum
                    •  Low Side Nozzles: 66” (167.6 cm) minimum

                    •  FlowCell™ Nozzles: 50” (127 cm) minimum
