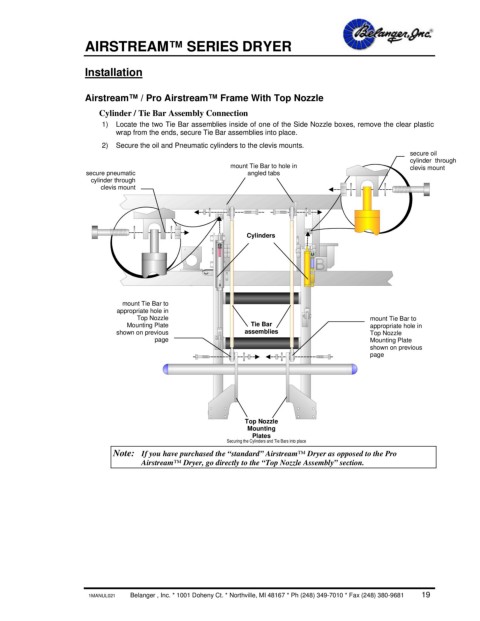

AIRSTREAM™ SERIES DRYER

Installation

Airstream™ / Pro Airstream™ Frame With Top Nozzle
Cylinder / Tie Bar Assembly Connection
1) Locate the two Tie Bar assemblies inside of one of the Side Nozzle boxes, remove the clear plastic
wrap from the ends, secure Tie Bar assemblies into place.
2) Secure the oil and Pneumatic cylinders to the clevis mounts.
secure oil
cylinder through
mount Tie Bar to hole in clevis mount
secure pneumatic angled tabs
cylinder through
clevis mount

Cylinders

mount Tie Bar to
appropriate hole in
Top Nozzle mount Tie Bar to
Mounting Plate Tie Bar appropriate hole in
shown on previous assemblies Top Nozzle
page Mounting Plate
shown on previous
page

Top Nozzle
Mounting
Plates
Securing the Cylinders and Tie Bars into place
Note: If you have purchased the “standard” Airstream™ Dryer as opposed to the Pro
Airstream™ Dryer, go directly to the “Top Nozzle Assembly” section.
