AIRSTREAM™ SERIES DRYER

Installation

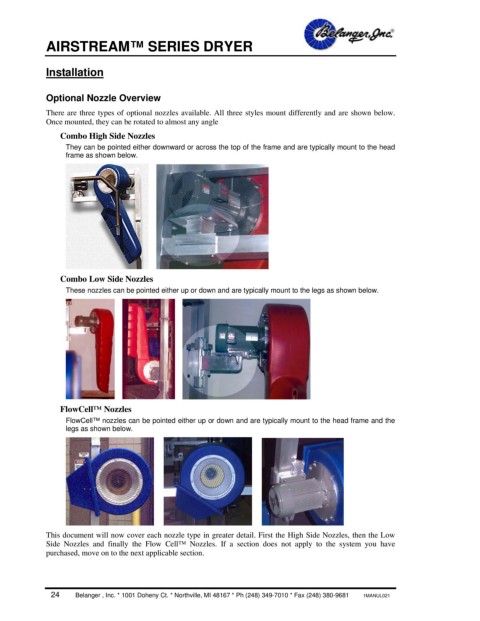

Optional Nozzle Overview
There are three types of optional nozzles available. All three styles mount differently and are shown below.
Once mounted, they can be rotated to almost any angle
Combo High Side Nozzles
They can be pointed either downward or across the top of the frame and are typically mount to the head
frame as shown below.

Combo Low Side Nozzles
These nozzles can be pointed either up or down and are typically mount to the legs as shown below.

FlowCell™ Nozzles
FlowCell™ nozzles can be pointed either up or down and are typically mount to the head frame and the
legs as shown below.

This document will now cover each nozzle type in greater detail. First the High Side Nozzles, then the Low
Side Nozzles and finally the Flow Cell™ Nozzles. If a section does not apply to the system you have
purchased, move on to the next applicable section.
