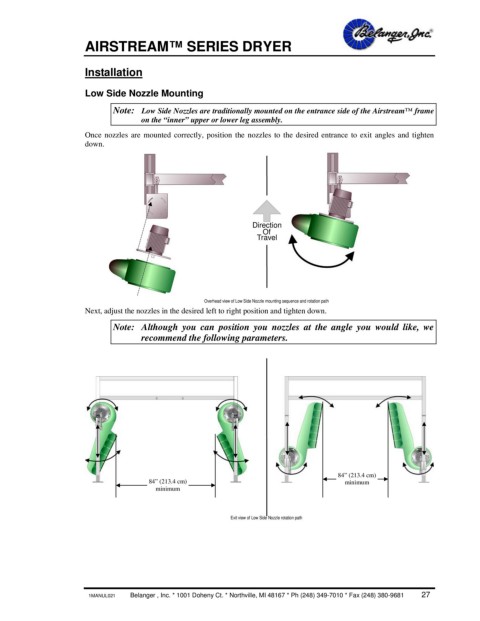

AIRSTREAM™ SERIES DRYER

Installation

Low Side Nozzle Mounting

Note: Low Side Nozzles are traditionally mounted on the entrance side of the Airstream™ frame
on the “inner” upper or lower leg assembly.

Once nozzles are mounted correctly, position the nozzles to the desired entrance to exit angles and tighten
down.

Direction
Of
Travel

Overhead view of Low Side Nozzle mounting sequence and rotation path
Next, adjust the nozzles in the desired left to right position and tighten down.
Note: Although you can position you nozzles at the angle you would like, we
recommend the following parameters.

84” (213.4 cm)
84” (213.4 cm) minimum
minimum

Exit view of Low Side Nozzle rotation path
