AIRSTREAM™ SERIES DRYER
Installation
Utilities Electrical
Control Panel Overview
DC motor
controller
Circuit
breaker,
3 AMP
Programmable
Logic Controller
(PLC)
Input
Top Blower terminal
down speed strip
control

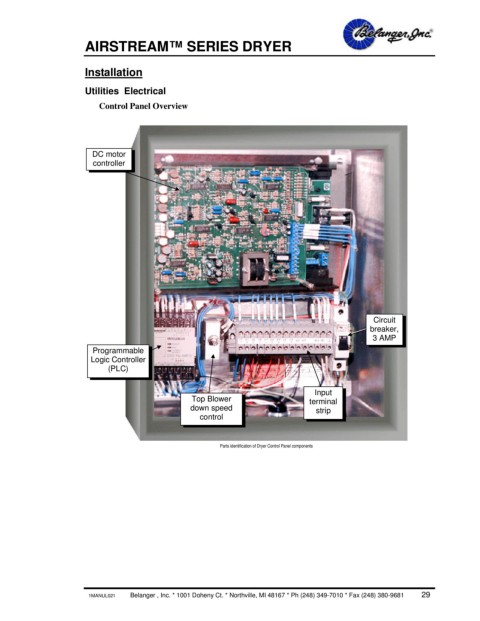

Parts identification of Dryer Control Panel components
