Page 28 - Airstream™ Series Dryer

AIRSTREAM™ SERIES DRYER

Installation

High Side Nozzle Mounting

Note: High Side Nozzles are traditionally mounted on the exit side of the Airstream™ frame on
the head assembly “lower” cross beam.

Once nozzles are mounted correctly, position the nozzles to the desired entrance to exit angles and tighten
down.

Direction
Of
Travel

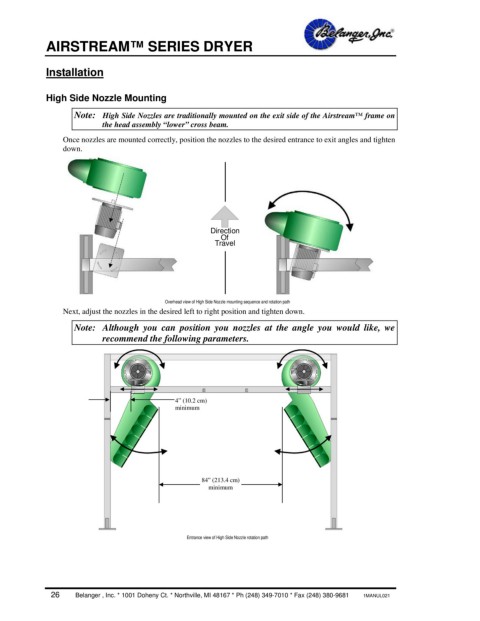

Overhead view of High Side Nozzle mounting sequence and rotation path
Next, adjust the nozzles in the desired left to right position and tighten down.
Note: Although you can position you nozzles at the angle you would like, we
recommend the following parameters.

4” (10.2 cm)
minimum

84” (213.4 cm)
minimum

Entrance view of High Side Nozzle rotation path
