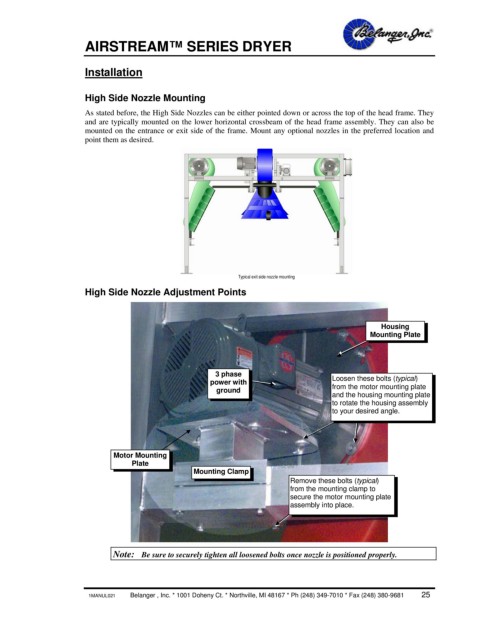

AIRSTREAM™ SERIES DRYER

Installation

High Side Nozzle Mounting
As stated before, the High Side Nozzles can be either pointed down or across the top of the head frame. They
and are typically mounted on the lower horizontal crossbeam of the head frame assembly. They can also be
mounted on the entrance or exit side of the frame. Mount any optional nozzles in the preferred location and
point them as desired.

Typical exit side nozzle mounting
High Side Nozzle Adjustment Points

Housing
Mounting Plate

3 phase
power with Loosen these bolts (typical)
ground from the motor mounting plate
and the housing mounting plate
to rotate the housing assembly
to your desired angle.

Motor Mounting
Plate
Mounting Clamp
Remove these bolts (typical)
from the mounting clamp to
secure the motor mounting plate
assembly into place.

Note: Be sure to securely tighten all loosened bolts once nozzle is positioned properly.
