AIRSTREAM™ SERIES DRYER

Installation

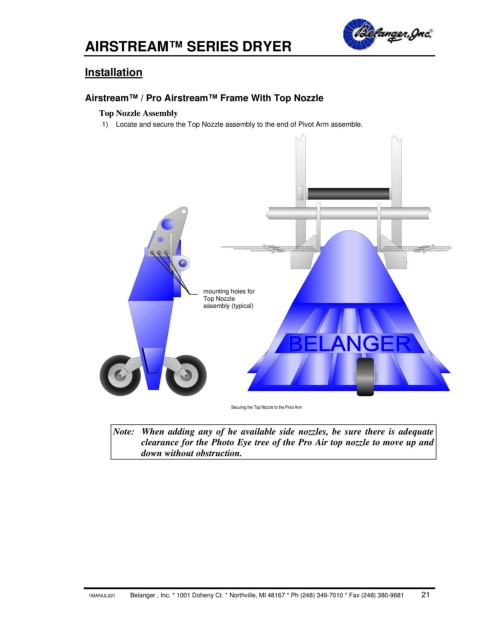

Airstream™ / Pro Airstream™ Frame With Top Nozzle
Top Nozzle Assembly
1) Locate and secure the Top Nozzle assembly to the end of Pivot Arm assemble.

mounting holes for
Top Nozzle
assembly (typical)

Securing the Top Nozzle to the Pivot Arm

Note: When adding any of he available side nozzles, be sure there is adequate
clearance for the Photo Eye tree of the Pro Air top nozzle to move up and
down without obstruction.

1MANUL021 Belanger , Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 21
