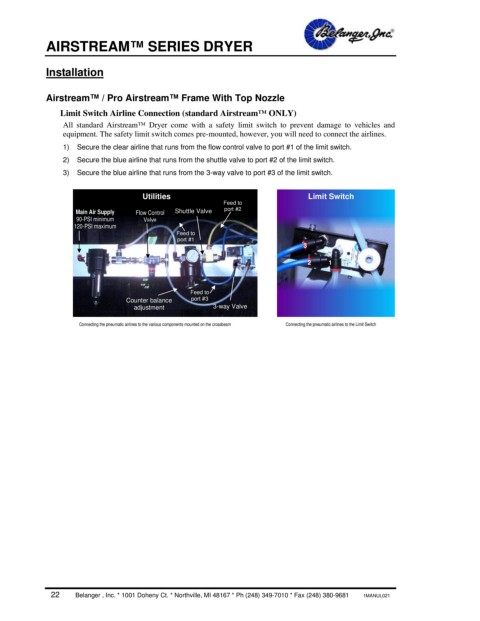

AIRSTREAM™ SERIES DRYER

Installation

Airstream™ / Pro Airstream™ Frame With Top Nozzle
Limit Switch Airline Connection (standard Airstream™ ONLY)
All standard Airstream™ Dryer come with a safety limit switch to prevent damage to vehicles and
equipment. The safety limit switch comes pre-mounted, however, you will need to connect the airlines.
1) Secure the clear airline that runs from the flow control valve to port #1 of the limit switch.
2) Secure the blue airline that runs from the shuttle valve to port #2 of the limit switch.
3) Secure the blue airline that runs from the 3-way valve to port #3 of the limit switch.

Utilities Limit Switch
Feed to
Main Air Supply Flow Control Shuttle Valve port #2
90-PSI minimum Valve
120-PSI maximum
Feed to
port #1
3
2 1

Feed to
Counter balance port #3
adjustment 3-way Valve

Connecting the pneumatic airlines to the various components mounted on the crossbeam Connecting the pneumatic airlines to the Limit Switch
