AIRSTREAM™ SERIES DRYER
Installation
Utilities Pneumatic
The components shown are located on the passenger / exit side of the head frame assembly.
1) Install approximately 110PSI (6.89 BAR) compressed air supply to the filter panel mounted on
the exit / passenger side of the head frame assembly.
Pro Airstream™ Dryer
Main Air Supply
90-PSI minimum
120-PSI maximum
Counter
balance
adjustment

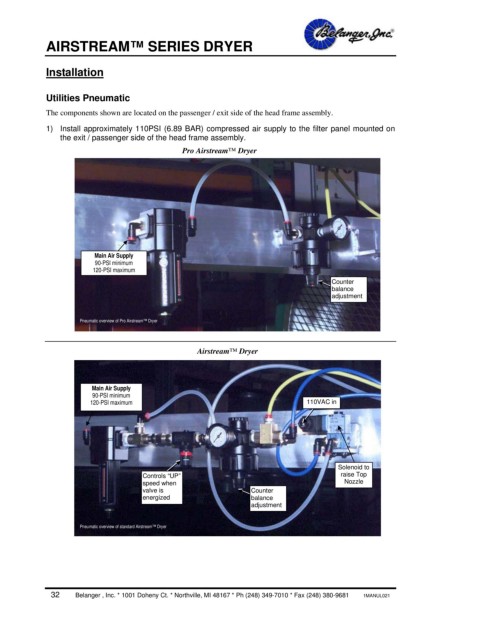

Pneumatic overview of Pro Airstream™ Dryer
Airstream™ Dryer
Main Air Supply
90-PSI minimum
120-PSI maximum 110VAC in
Solenoid to
Controls “UP” raise Top
speed when Nozzle
valve is Counter
energized balance
adjustment
Pneumatic overview of standard Airstream™ Dryer
