Page 14 - Airstream™ Series Dryer
P. 14

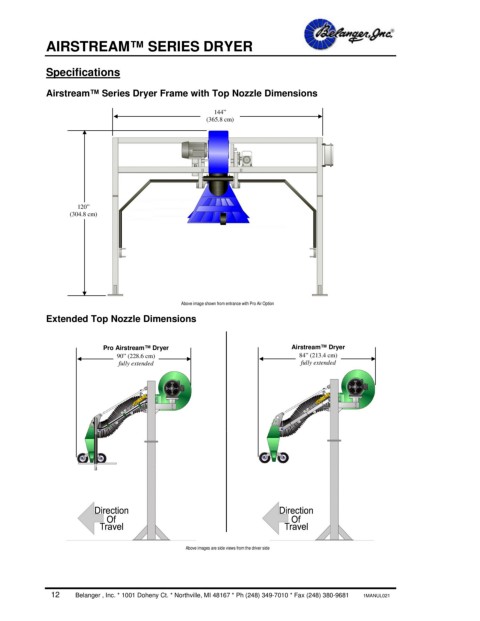

AIRSTREAM™ SERIES DRYER
Specifications
Airstream™ Series Dryer Frame with Top Nozzle Dimensions
144”
(365.8 cm)
120”
(304.8 cm)
Above image shown from entrance with Pro Air Option
Extended Top Nozzle Dimensions
Pro Airstream™ Dryer Airstream™ Dryer
90” (228.6 cm) 84” (213.4 cm)
fully extended fully extended
Above images are side views from the driver side
12 Belanger , Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL021
