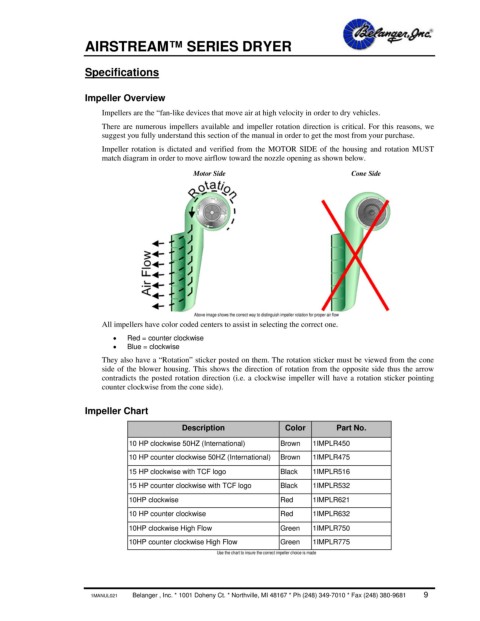

AIRSTREAM™ SERIES DRYER

Specifications

Impeller Overview
Impellers are the “fan-like devices that move air at high velocity in order to dry vehicles.
There are numerous impellers available and impeller rotation direction is critical. For this reasons, we
suggest you fully understand this section of the manual in order to get the most from your purchase.
Impeller rotation is dictated and verified from the MOTOR SIDE of the housing and rotation MUST
match diagram in order to move airflow toward the nozzle opening as shown below.

Motor Side Cone Side

Above image shows the correct way to distinguish impeller rotation for proper air flow
All impellers have color coded centers to assist in selecting the correct one.
• Red = counter clockwise
• Blue = clockwise

They also have a “Rotation” sticker posted on them. The rotation sticker must be viewed from the cone
side of the blower housing. This shows the direction of rotation from the opposite side thus the arrow
contradicts the posted rotation direction (i.e. a clockwise impeller will have a rotation sticker pointing
counter clockwise from the cone side).

Impeller Chart

Description Color Part No.
10 HP clockwise 50HZ (International) Brown 1IMPLR450
10 HP counter clockwise 50HZ (International) Brown 1IMPLR475

15 HP clockwise with TCF logo Black 1IMPLR516
15 HP counter clockwise with TCF logo Black 1IMPLR532
10HP clockwise Red 1IMPLR621
10 HP counter clockwise Red 1IMPLR632

10HP clockwise High Flow Green 1IMPLR750
10HP counter clockwise High Flow Green 1IMPLR775
Use the chart to insure the correct impeller choice is made

1MANUL021 Belanger , Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 9
