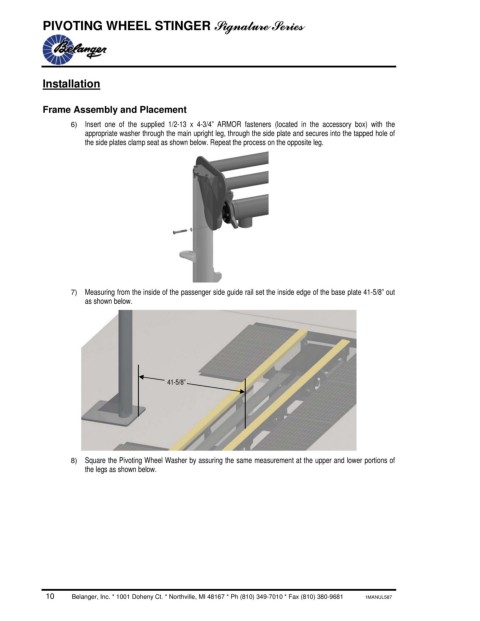

PIVOTING WHEEL STINGER Signature Series

Installation

Frame Assembly and Placement
6) Insert one of the supplied 1/2-13 x 4-3/4” ARMOR fasteners (located in the accessory box) with the
appropriate washer through the main upright leg, through the side plate and secures into the tapped hole of
the side plates clamp seat as shown below. Repeat the process on the opposite leg.

7) Measuring from the inside of the passenger side guide rail set the inside edge of the base plate 41-5/8” out
as shown below.

41-5/8”

8) Square the Pivoting Wheel Washer by assuring the same measurement at the upper and lower portions of
the legs as shown below.
