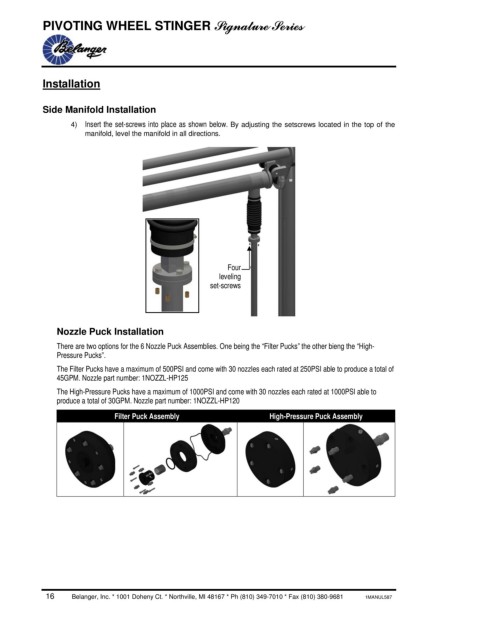

PIVOTING WHEEL STINGER Signature Series

Installation

Side Manifold Installation
4) Insert the set-screws into place as shown below. By adjusting the setscrews located in the top of the
manifold, level the manifold in all directions.

Four
leveling
set-screws

Nozzle Puck Installation
There are two options for the 6 Nozzle Puck Assemblies. One being the “Filter Pucks” the other bieng the “High-
Pressure Pucks”.
The Filter Pucks have a maximum of 500PSI and come with 30 nozzles each rated at 250PSI able to produce a total of
45GPM. Nozzle part number: 1NOZZL-HP125
The High-Pressure Pucks have a maximum of 1000PSI and come with 30 nozzles each rated at 1000PSI able to
produce a total of 30GPM. Nozzle part number: 1NOZZL-HP120

Filter Puck Assembly High-Pressure Puck Assembly
