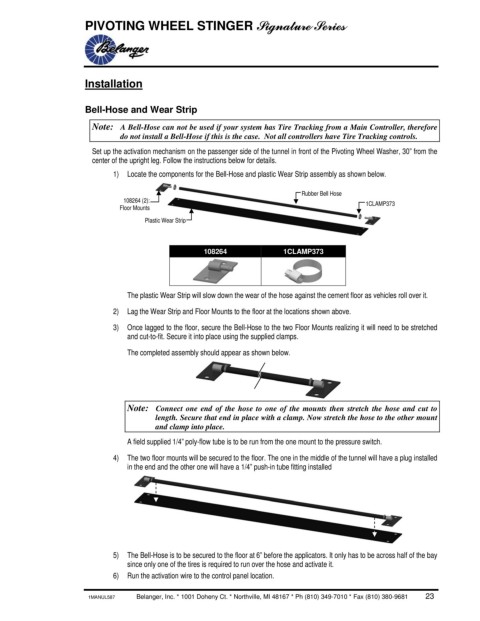

PIVOTING WHEEL STINGER Signature Series

Installation

Bell-Hose and Wear Strip

Note: A Bell-Hose can not be used if your system has Tire Tracking from a Main Controller, therefore
do not install a Bell-Hose if this is the case. Not all controllers have Tire Tracking controls.
Set up the activation mechanism on the passenger side of the tunnel in front of the Pivoting Wheel Washer, 30” from the
center of the upright leg. Follow the instructions below for details.
1) Locate the components for the Bell-Hose and plastic Wear Strip assembly as shown below.

Rubber Bell Hose
108264 (2): 1CLAMP373
Floor Mounts
Plastic Wear Strip

108264 1CLAMP373

The plastic Wear Strip will slow down the wear of the hose against the cement floor as vehicles roll over it.

2) Lag the Wear Strip and Floor Mounts to the floor at the locations shown above.

3) Once lagged to the floor, secure the Bell-Hose to the two Floor Mounts realizing it will need to be stretched
and cut-to-fit. Secure it into place using the supplied clamps.

The completed assembly should appear as shown below.

Note: Connect one end of the hose to one of the mounts then stretch the hose and cut to
length. Secure that end in place with a clamp. Now stretch the hose to the other mount
and clamp into place.

A field supplied 1/4” poly-flow tube is to be run from the one mount to the pressure switch.
4) The two floor mounts will be secured to the floor. The one in the middle of the tunnel will have a plug installed
in the end and the other one will have a 1/4” push-in tube fitting installed

5) The Bell-Hose is to be secured to the floor at 6” before the applicators. It only has to be across half of the bay
since only one of the tires is required to run over the hose and activate it.
6) Run the activation wire to the control panel location.
