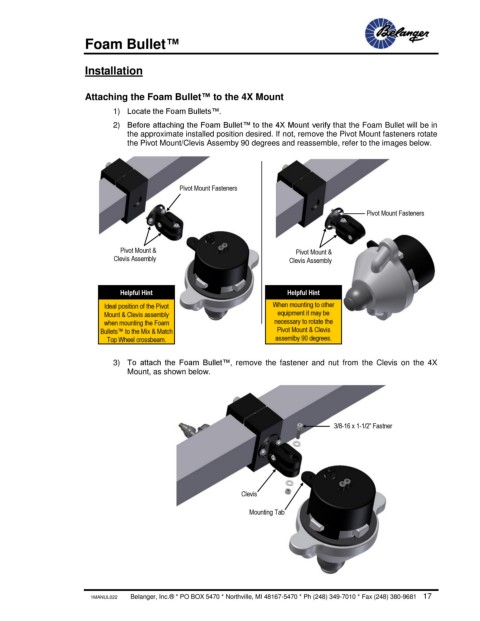

Page 21 - Foam Bullet™

Foam Bullet™

Installation

Attaching the Foam Bullet™ to the 4X Mount

1) Locate the Foam Bullets™.
2) Before attaching the Foam Bullet™ to the 4X Mount verify that the Foam Bullet will be in
the approximate installed position desired. If not, remove the Pivot Mount fasteners rotate
the Pivot Mount/Clevis Assemby 90 degrees and reassemble, refer to the images below.

Pivot Mount Fasteners

Pivot Mount Fasteners

Pivot Mount & Pivot Mount &
Clevis Assembly Clevis Assembly

Helpful Hint Helpful Hint
Ideal position of the Pivot When mounting to other
Mount & Clevis assembly equipment it may be
when mounting the Foam necessary to rotate the
Bullets™ to the Mix & Match Pivot Mount & Clevis
Top Wheel crossbeam. assemlby 90 degrees.

3) To attach the Foam Bullet™, remove the fastener and nut from the Clevis on the 4X
Mount, as shown below.

3/8-16 x 1-1/2” Fastner

Clevis

Mounting Tab

1MANUL022 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 17
