Foam Bullet™

Installation

Attaching the Foam Bullet™ to the Flat Mount

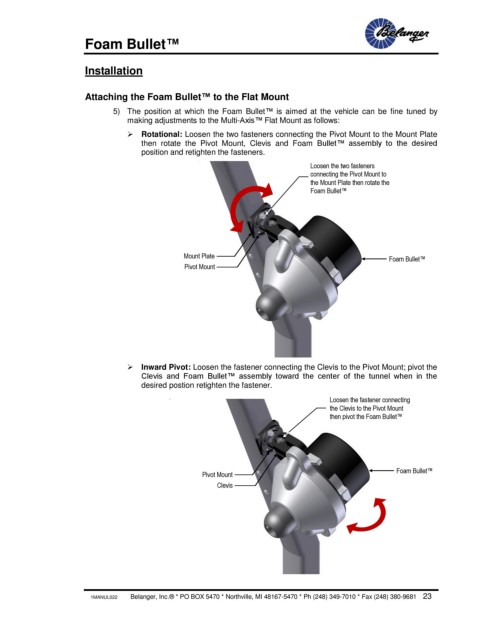

5) The position at which the Foam Bullet™ is aimed at the vehicle can be fine tuned by
making adjustments to the Multi-Axis™ Flat Mount as follows:

 Rotational: Loosen the two fasteners connecting the Pivot Mount to the Mount Plate
then rotate the Pivot Mount, Clevis and Foam Bullet™ assembly to the desired
position and retighten the fasteners.
Loosen the two fasteners
connecting the Pivot Mount to
the Mount Plate then rotate the
Foam Bullet™

Mount Plate Foam Bullet™
Pivot Mount

 Inward Pivot: Loosen the fastener connecting the Clevis to the Pivot Mount; pivot the
Clevis and Foam Bullet™ assembly toward the center of the tunnel when in the
desired postion retighten the fastener.
Loosen the fastener connecting
the Clevis to the Pivot Mount
then pivot the Foam Bullet™

Foam Bullet™
Pivot Mount
Clevis
