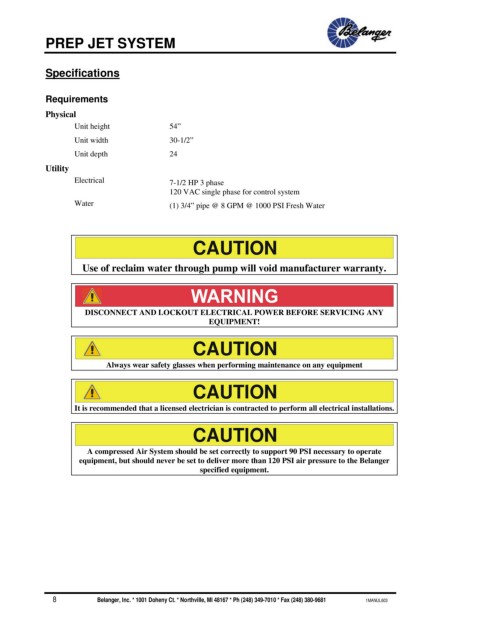

PREP JET SYSTEM
Specifications
Requirements
Physical
Unit height 54”
Unit width 30-1/2”
Unit depth 24
Utility
Electrical 7-1/2 HP 3 phase
120 VAC single phase for control system
Water (1) 3/4” pipe @ 8 GPM @ 1000 PSI Fresh Water
CAUTION
Use of reclaim water through pump will void manufacturer warranty.
DISCONNECT AND LOCKOUT ELECTRICAL POWER BEFORE SERVICING ANY
EQUIPMENT!
CAUTION
Always wear safety glasses when performing maintenance on any equipment
CAUTION
It is recommended that a licensed electrician is contracted to perform all electrical installations.
CAUTION
A compressed Air System should be set correctly to support 90 PSI necessary to operate
equipment, but should never be set to deliver more than 120 PSI air pressure to the Belanger
specified equipment.
