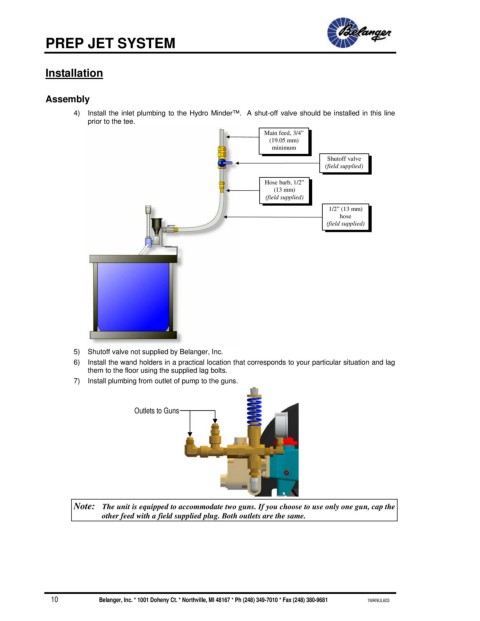

PREP JET SYSTEM

Installation

Assembly
4) Install the inlet plumbing to the Hydro Minder™. A shut-off valve should be installed in this line
prior to the tee.
Main feed, 3/4”
(19.05 mm)
minimum
Shutoff valve
(field supplied)
Hose barb, 1/2”
(13 mm)
(field supplied)
1/2” (13 mm)
hose
(field supplied)

5) Shutoff valve not supplied by Belanger, Inc.
6) Install the wand holders in a practical location that corresponds to your particular situation and lag
them to the floor using the supplied lag bolts.
7) Install plumbing from outlet of pump to the guns.

Outlets to Guns

Note: The unit is equipped to accommodate two guns. If you choose to use only one gun, cap the
other feed with a field supplied plug. Both outlets are the same.
