Chapter 8 Wall Manifold / Optional Water Heater
Wall Manifold Thru-Wall Plate (Optional)
Heated Equipment Room Installation or Heated Trough (In-Bay or Equipment
Room)
The Wall Manifold should be positioned on the exit side of the Boom Mount. The preferred boom position is to have it
knuckle towards the entrance. The hoses from the boom to the optional Thru-Wall Plate will flex best into position(s)
shown in the following two images. The Wall Manifold should be installed in an area protected from freezing.

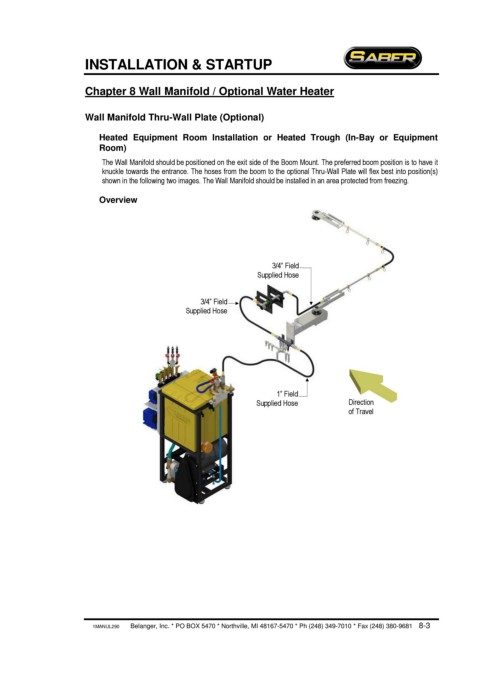

Overview
3/4” Field
Supplied Hose
3/4” Field
Supplied Hose
1” Field
Supplied Hose Direction
of Travel
