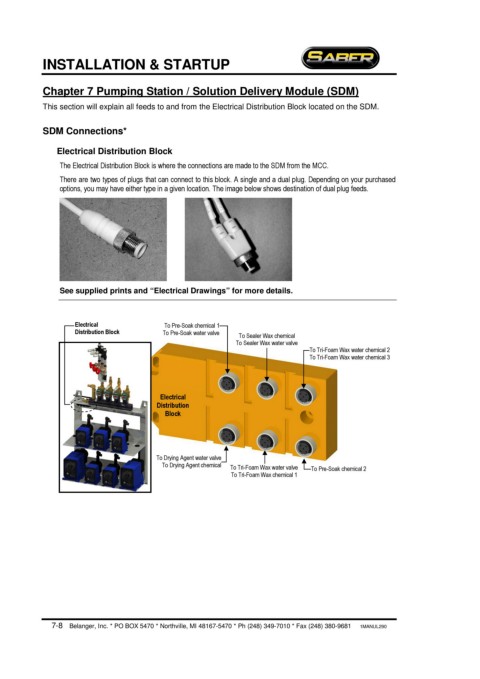

INSTALLATION & STARTUP

Chapter 7 Pumping Station / Solution Delivery Module (SDM)
This section will explain all feeds to and from the Electrical Distribution Block located on the SDM.

SDM Connections*

Electrical Distribution Block
The Electrical Distribution Block is where the connections are made to the SDM from the MCC.
There are two types of plugs that can connect to this block. A single and a dual plug. Depending on your purchased
options, you may have either type in a given location. The image below shows destination of dual plug feeds.

See supplied prints and “Electrical Drawings” for more details.

Electrical To Pre-Soak chemical 1
Distribution Block To Pre-Soak water valve To Sealer Wax chemical
To Sealer Wax water valve
To Tri-Foam Wax water chemical 2
To Tri-Foam Wax water chemical 3

Electrical
Distribution
Block

To Drying Agent water valve
To Drying Agent chemical To Tri-Foam Wax water valve
To Pre-Soak chemical 2
To Tri-Foam Wax chemical 1
