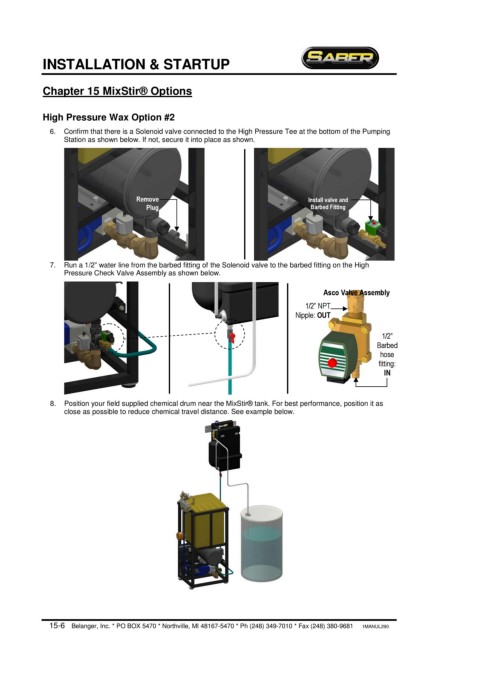

INSTALLATION & STARTUP
Chapter 15 MixStir® Options
High Pressure Wax Option #2
6. Confirm that there is a Solenoid valve connected to the High Pressure Tee at the bottom of the Pumping
Station as shown below. If not, secure it into place as shown.
Remove Install valve and
Plug Barbed Fitting
7. Run a 1/2” water line from the barbed fitting of the Solenoid valve to the barbed fitting on the High
Pressure Check Valve Assembly as shown below.
Asco Valve Assembly
1/2” NPT
Nipple: OUT
1/2”
Barbed
hose
fitting:
IN
8. Position your field supplied chemical drum near the MixStir® tank. For best performance, position it as
close as possible to reduce chemical travel distance. See example below.
