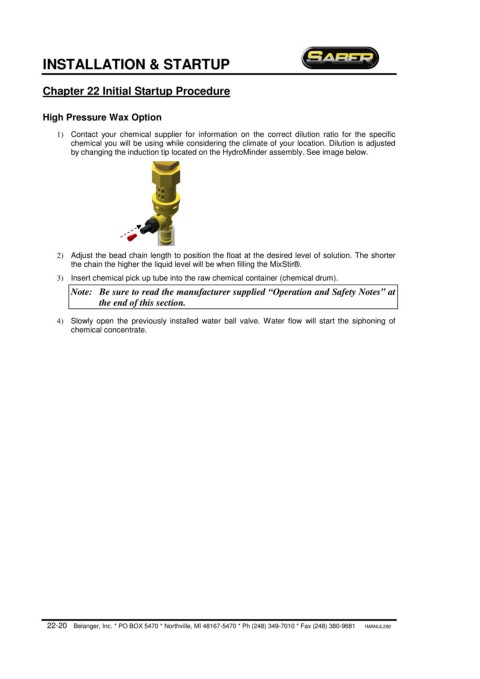

INSTALLATION & STARTUP
Chapter 22 Initial Startup Procedure
High Pressure Wax Option
1) Contact your chemical supplier for information on the correct dilution ratio for the specific
chemical you will be using while considering the climate of your location. Dilution is adjusted
by changing the induction tip located on the HydroMinder assembly. See image below.
2) Adjust the bead chain length to position the float at the desired level of solution. The shorter
the chain the higher the liquid level will be when filling the MixStir®.
3) Insert chemical pick up tube into the raw chemical container (chemical drum).
Note: Be sure to read the manufacturer supplied “Operation and Safety Notes” at
the end of this section.
4) Slowly open the previously installed water ball valve. Water flow will start the siphoning of
chemical concentrate.
